These preassembled kits allows very short conversion times of the old looms and also fast widht adjustments during the future normal weaving process.

Together with these mechanical or by Servomotors and electronic driven bandrapier devices, can be mounted also a pneumatic weftwire/yarn preparing and cutting device, preassembled in only one block and controlled by a microprocessor.

Suitable to convert and modernize old rapier or shuttle looms with weaving width from 1000 up to 8500 mm. by operation with only one bandrapier crossing the shed, mechanical driven or by Servomotors with electronic control.

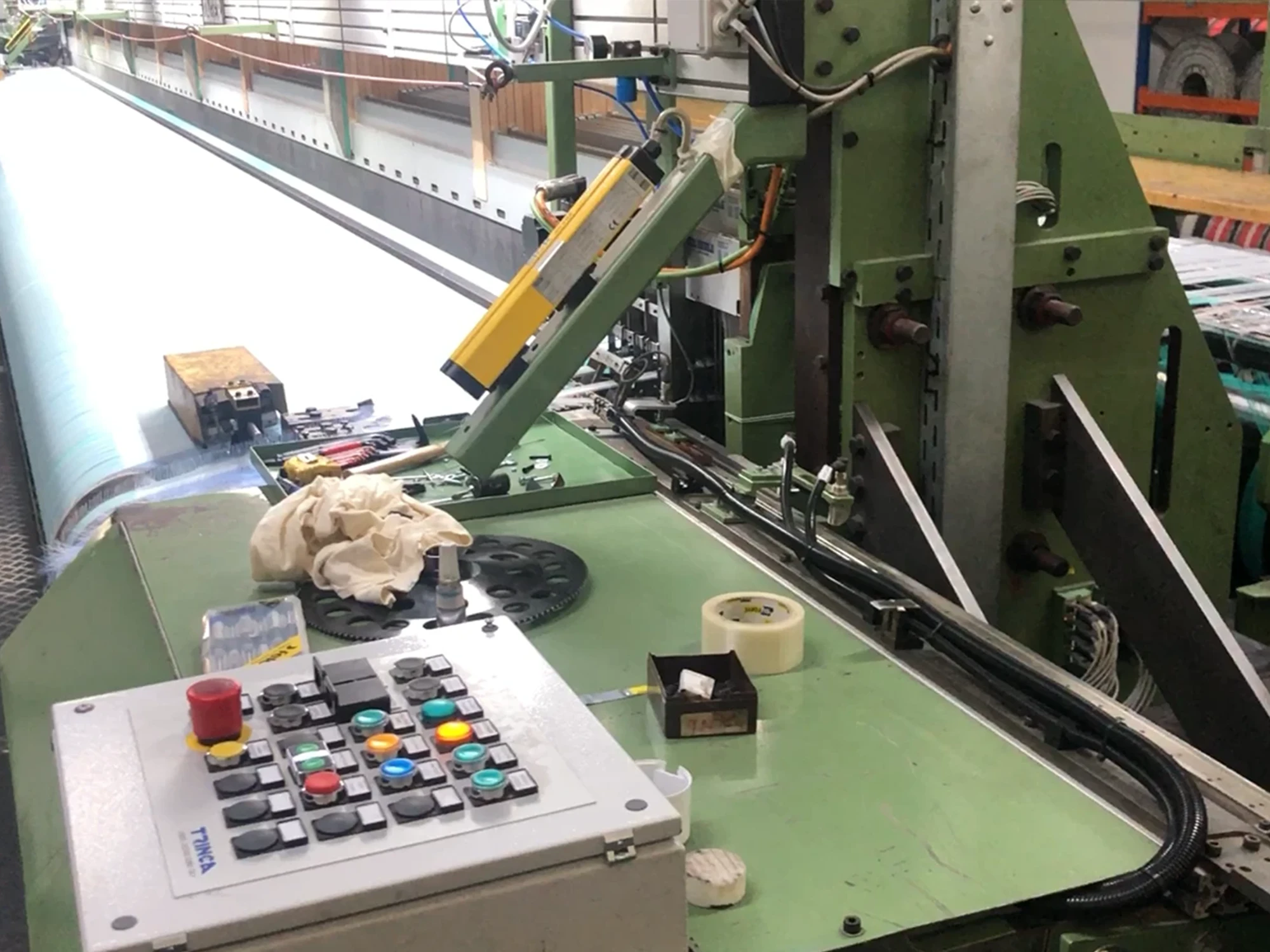

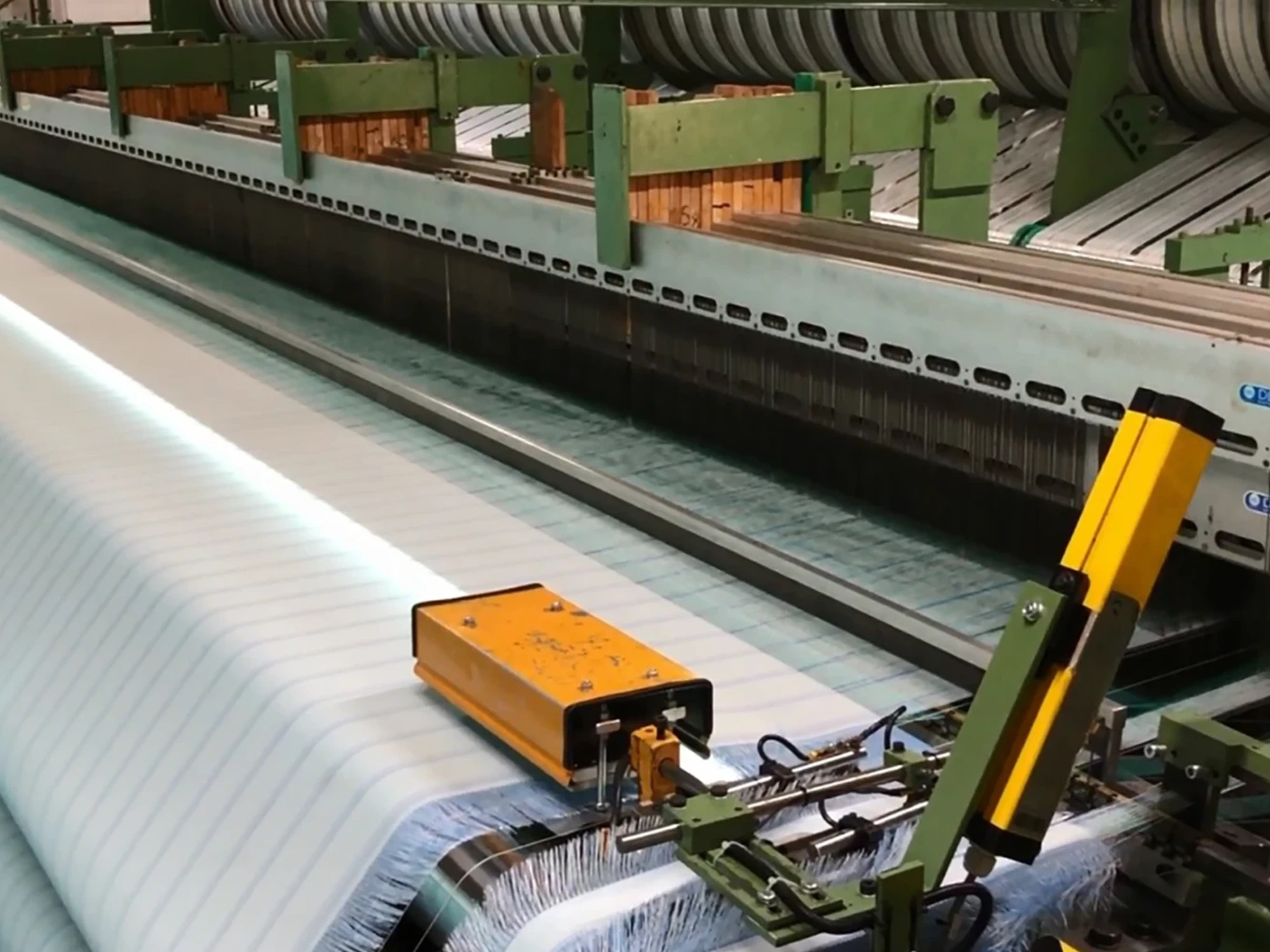

MECHANICAL AND ELETTRONIC RETROFITTING FOR PROJECTILE WIDE WEAVING LOOM:

Retrofitting of the original electronic with the electronic control TRINCA, suitable for control all the loom. Retrofitting of projectile weft insertion control with two band rapiers insertion driven by servomotors and guide by hooks. 8 Position change color device drive by servomotors and control by the main PC. Electronic weft tension regulation with load cells suitable for the forming fabric. Mechanical and electronic retrofitting of main motor movement. Mechanical and electronic retrofitting of let-off device. Design, production and assembling of the second warp beam in the top position over the first beams. Electronic retrofitting of 3 roller take-up device. Pneumatic electronic dobby driven by TRINCA control.

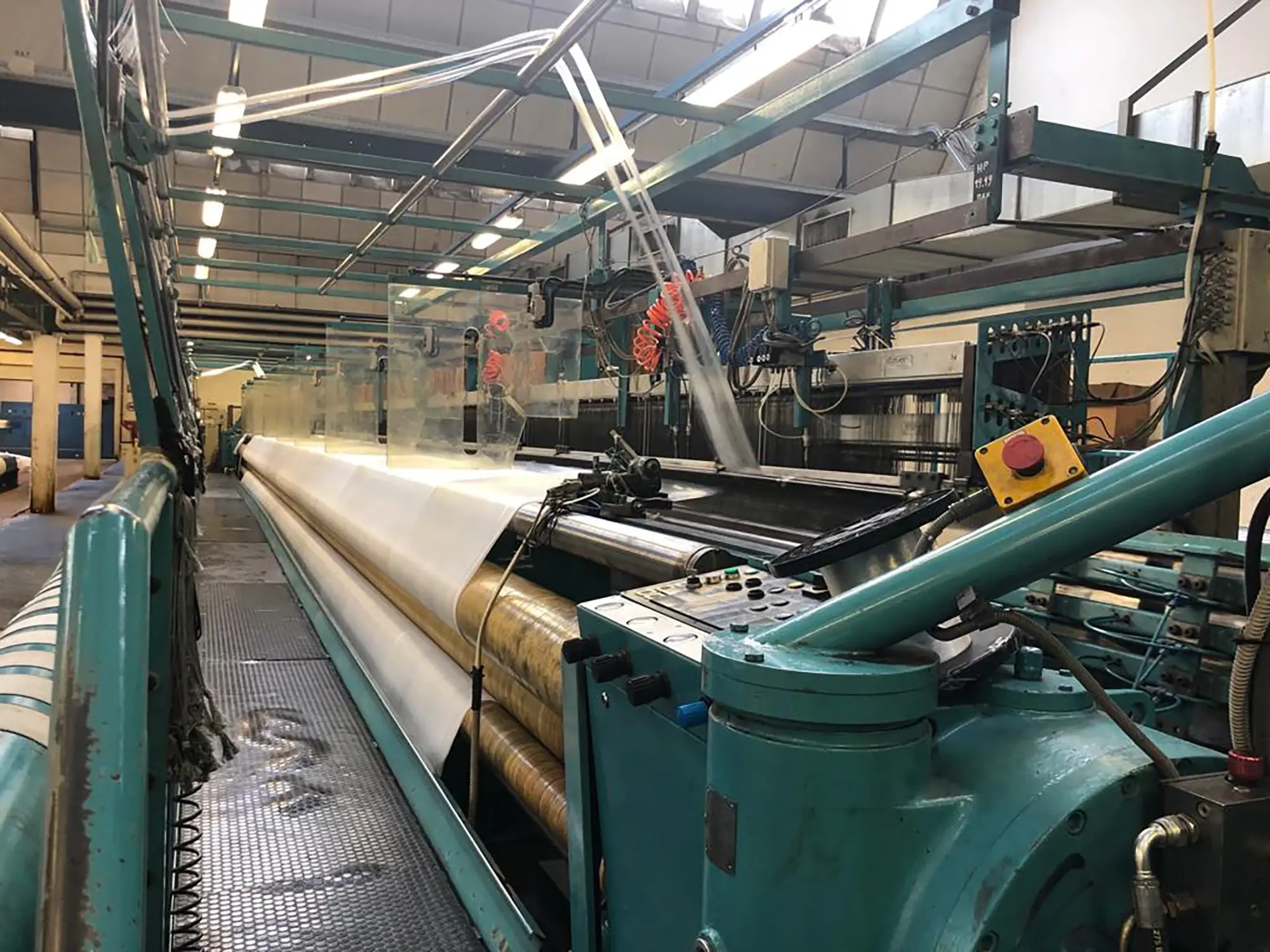

MECHANICAL AND ELETTRONIC RETROFITTING FOR SHUTTLE WIDE WEAVING LOOM

Retrofitting of the original electronic with the electronic control TRINCA windows embedded PC, suitable for control all the loom. Retrofitting weft insertion control from hydraulic picking shuttle to electronic picking shuttle driven by servomotor. Mechanical retrofitting of picking shuttle kit with interface of TRINCA system with the existing loom. Reduction of maintenance costs and loom overall dimensions.

Contact us for information on Conversion Kit
