T = loom
N = weft insertion belt
3B =3 connecting rods for smiting frame movement
G = grid

Adjustable speed: 0 – 40 beats/min (depending on weaving height)
Maximum impact force Nm: 100.000
Weaving width: 1,000 mm to 4,000 mm

Grid, architectural, and conveyor belt looms

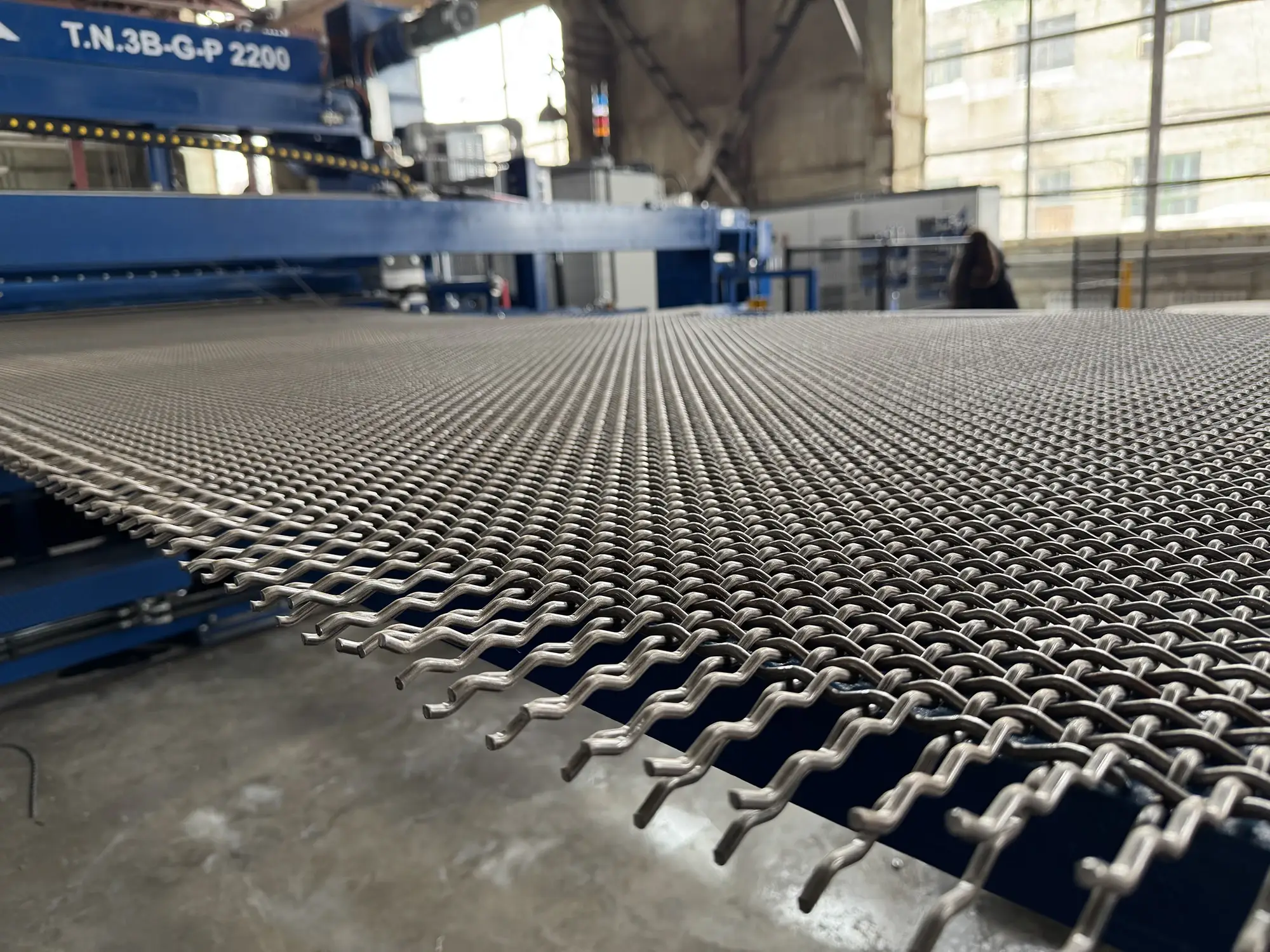

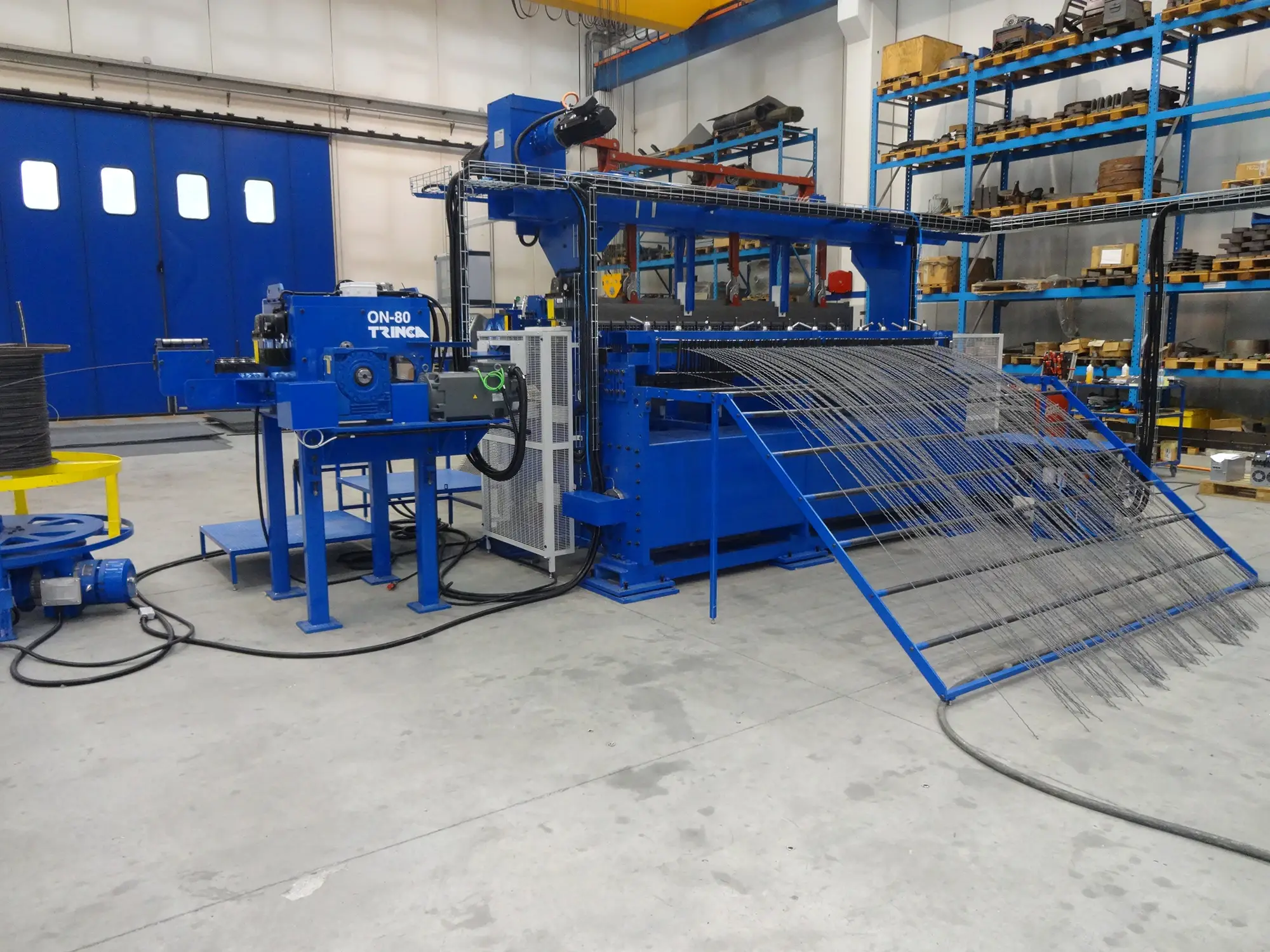

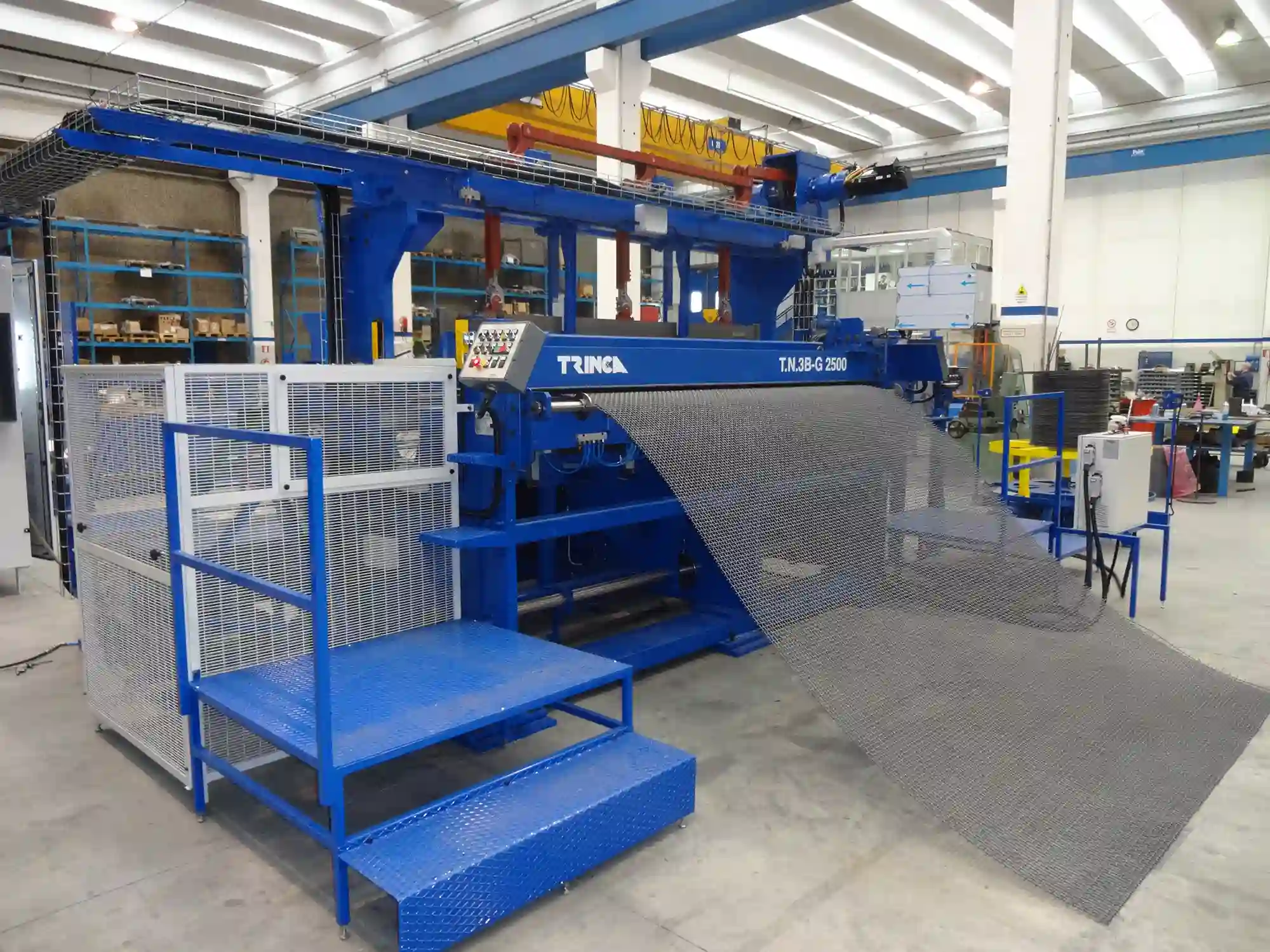

The T.N.3 B/G loom line was designed and built to meet the market demands for extremely heavy metal fabrics with weaving widths from 1 to 4 meters. With the patented weft insertion belt, it is possible to insert wires with a minimum diameter of 1.0 mm - a maximum of 10 mm, pre-crimped or straight, flexible or rigid.

SUITABLE FOR WEAVING

  • Weft wire from 0.10 mm to 10.00 mm
  • Pre-crimped weft wire from 1.00 mm to 10.00 mm
  • Pre-straightened rigid rods from 2.00 mm to 10.00 mm

Material Diameter in mm.
Carbon steel (R 1600 N/mm2 1 - 10
Stainless steel 1 - 10
Alloy steel 1 - 10

Contact us for information on MOD. T.N.3. B/G
