T = loom
E = eccentrics
M = medium
2AR =2 rigid rods

Fast weaving loom suitable to weave technical fabrics

TECHNICAL FEATURE OF THE LOOM

Adjustable speed:

  • 0 – 220 beats/min (depending on weaving width)

Weaving height:
  • Nominal loom height up to 14,000 mm
  • Fabric adjustment on both sides min. 2,000 mm

SUITABLE FOR WEAVING

Warp:
Materials/Diameters:

  • Geogrid fabric
  • Polyester – polyamide (monofilament) 0.15 mm – 0.6 mm
  • Multifilament yarns: min. 300 denier – max. 30,000 denier
  • Density: number of yarns per cm min. 5 – max. 200


Weft types:
Materials/Diameters:
  • Geogrid fabric with 4 weft inserts each;
  • Polyester – polyamide (monofilament) 0.15 mm – 0.6 mm
  • Multifilament yarns: denier min. 300 - max. 30,000
  • Density: number of threads per cm min. 5 - max. 200

Warp tension:
  • Warp tension max. 1,200 kg/meter
  • Warp tension: min. 100 kg/meter
  • Warp tension in beat-up: max.3,000 kg/meter

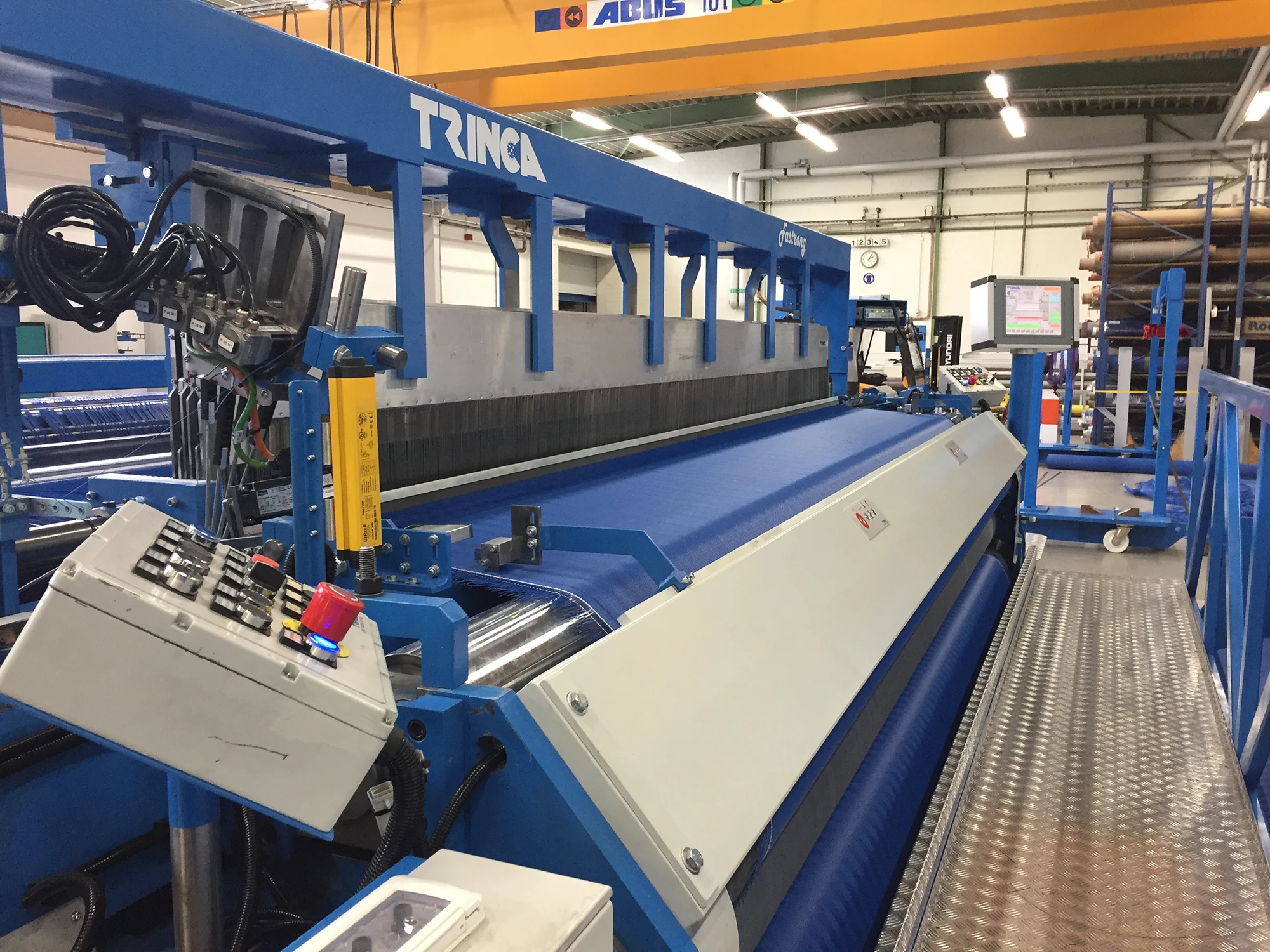

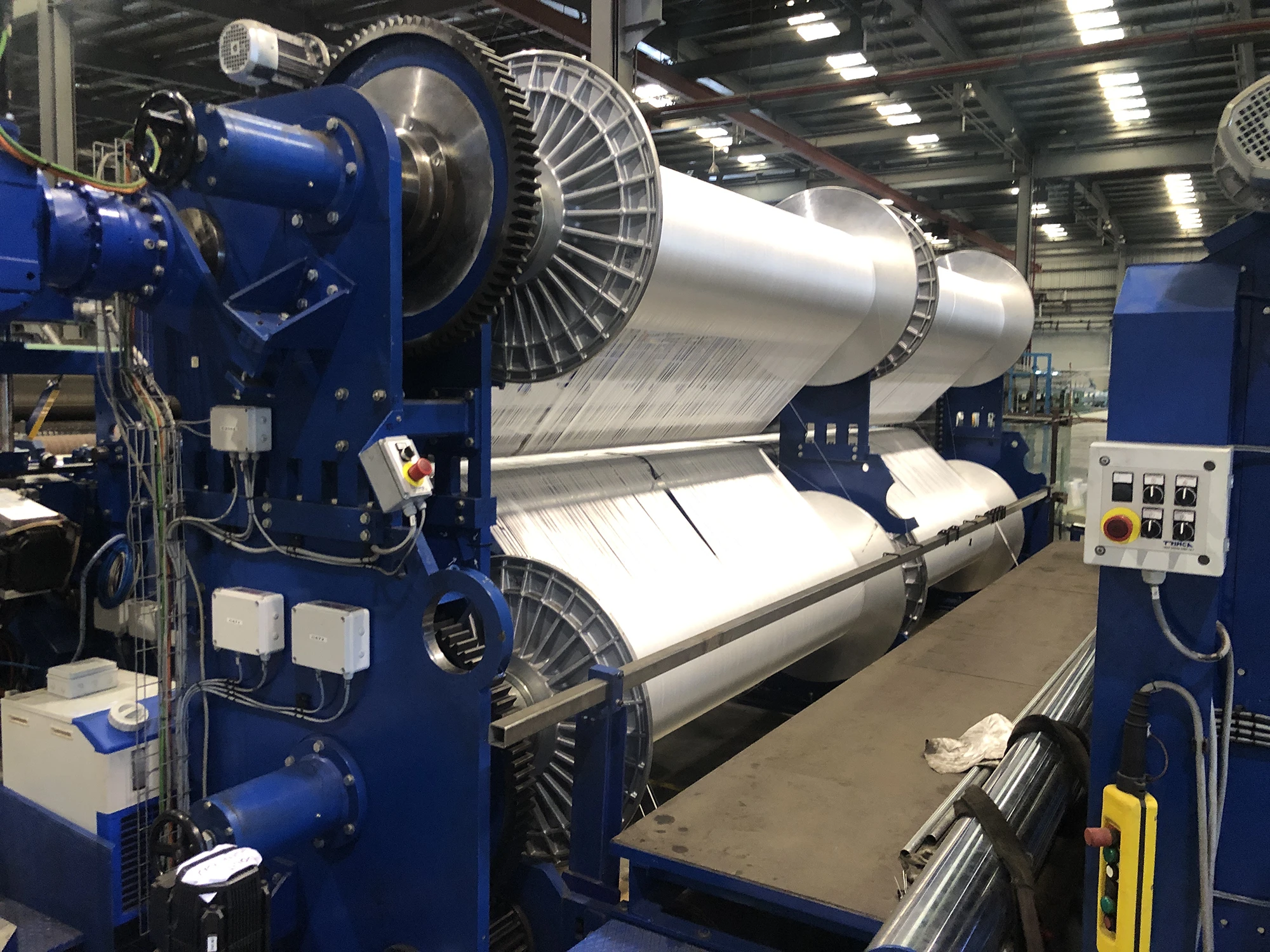

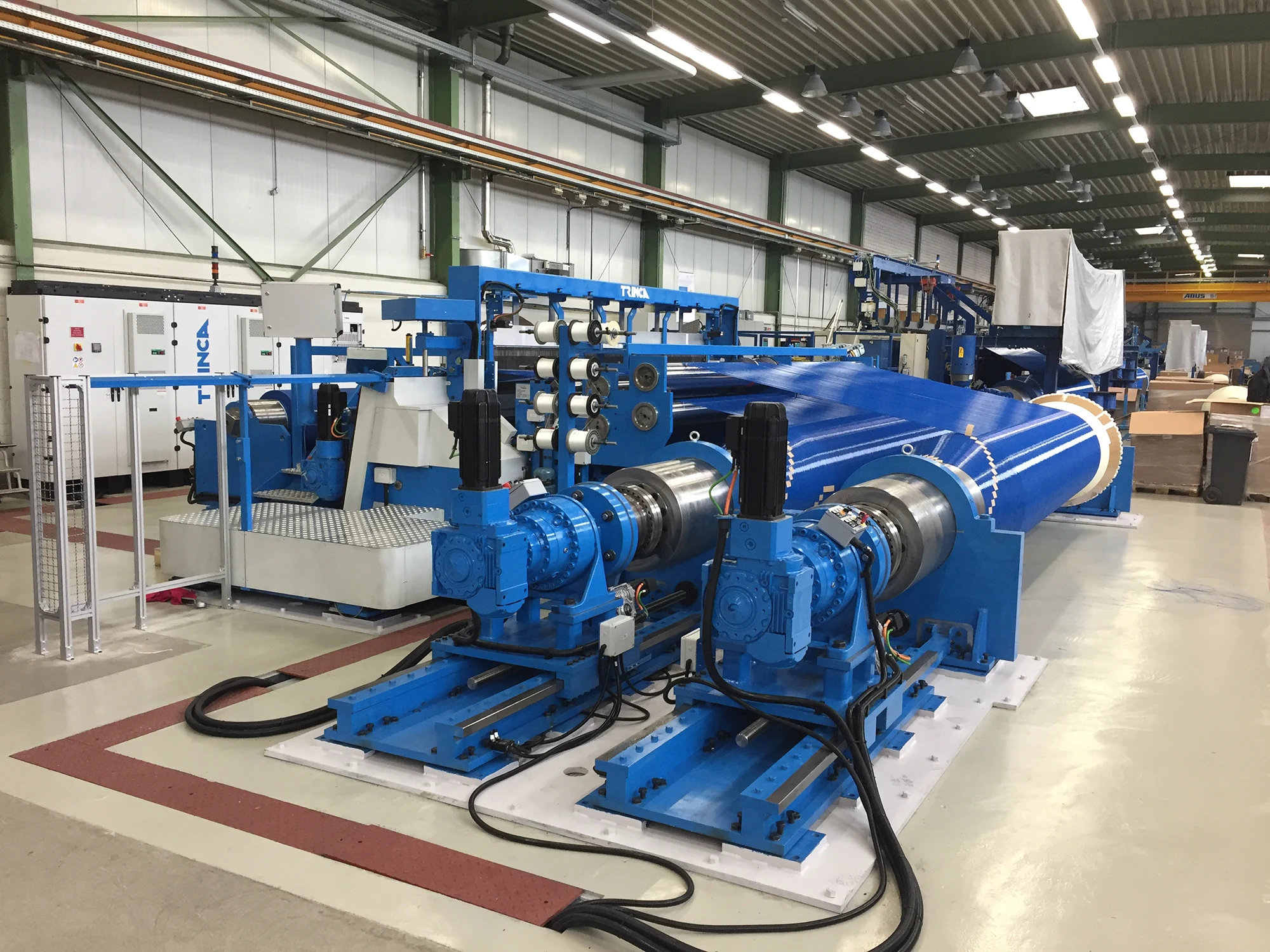

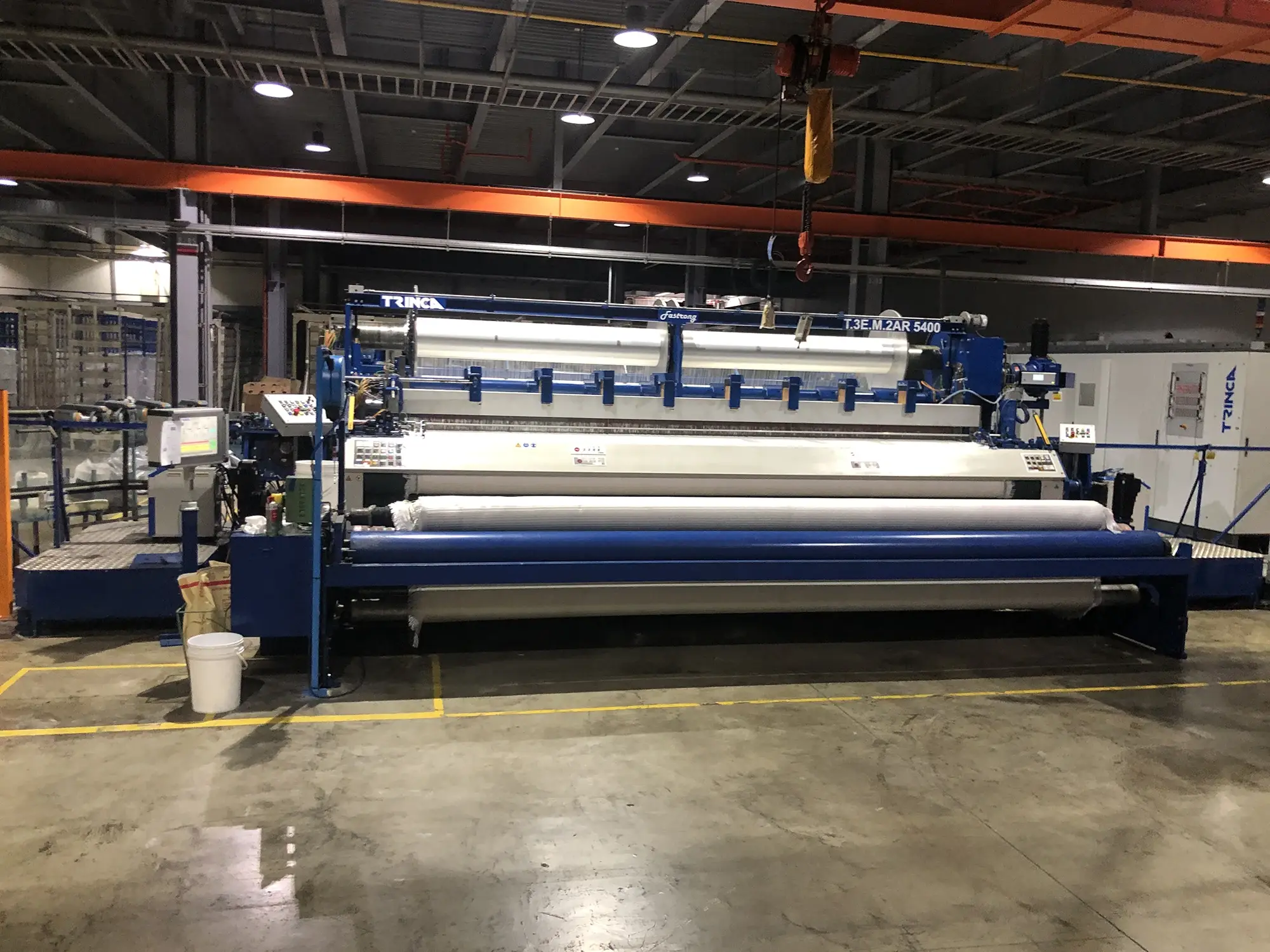

Contact us for information on MOD. FASTRONG T.E.M.2AR.
