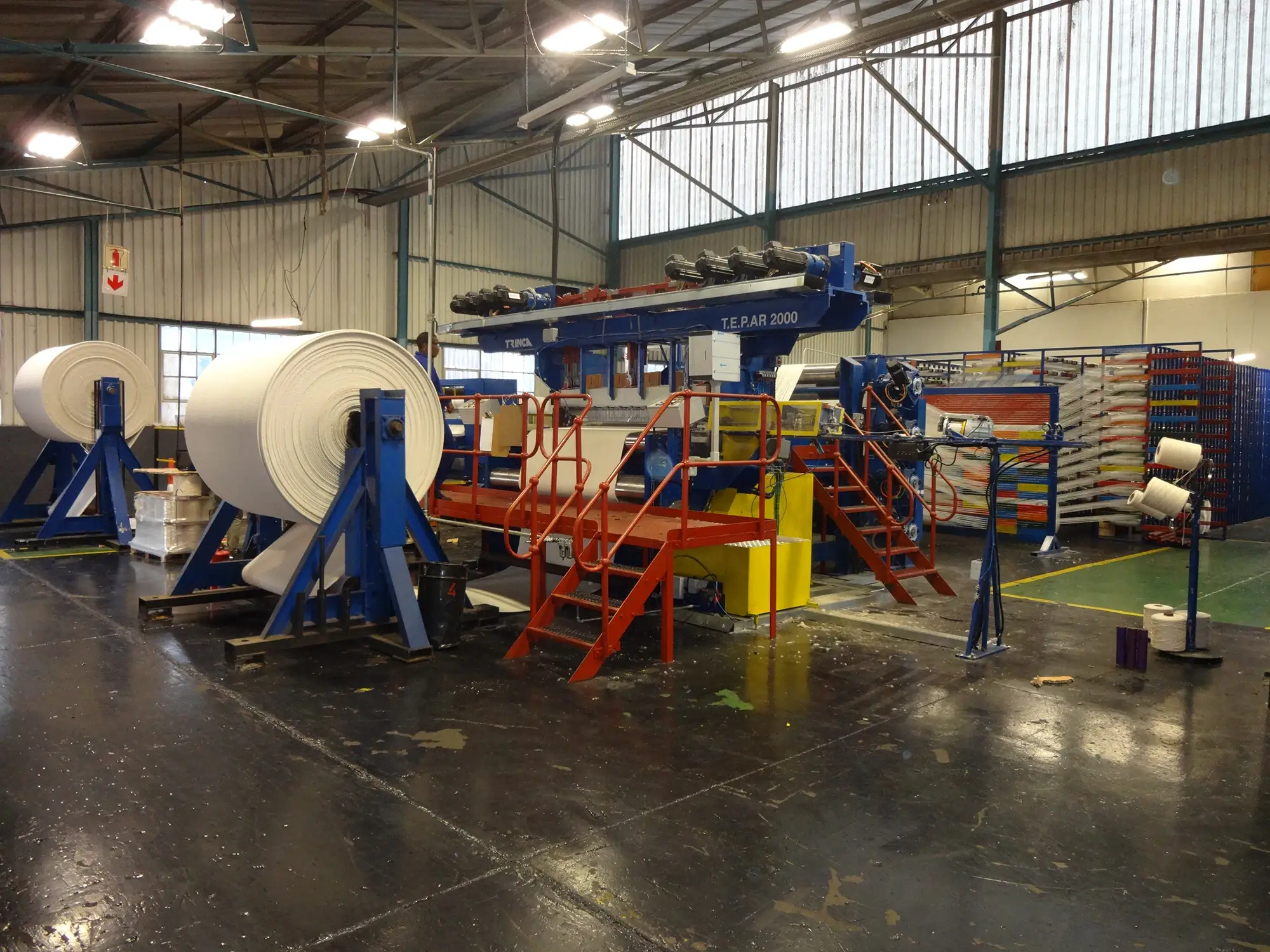

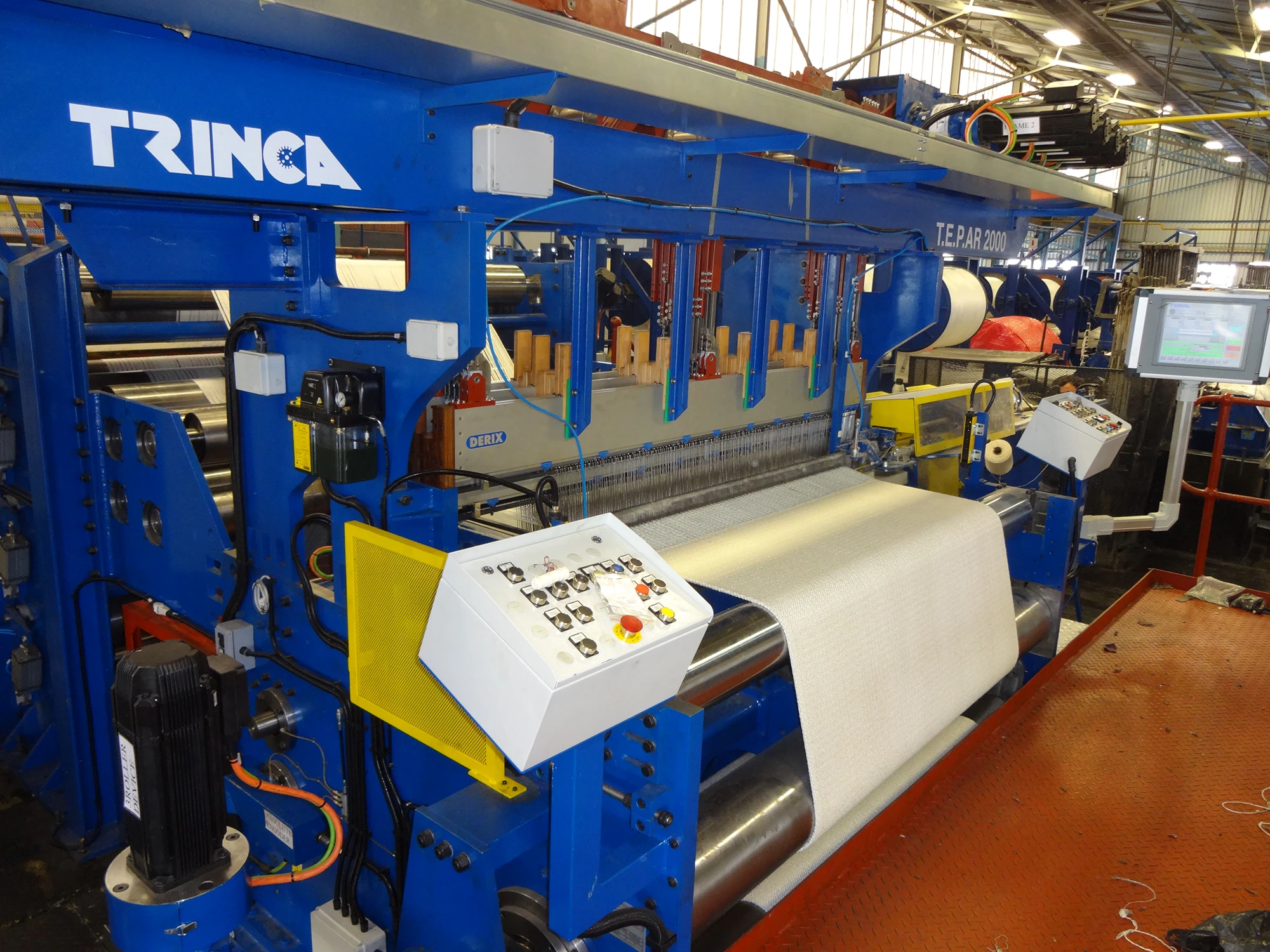

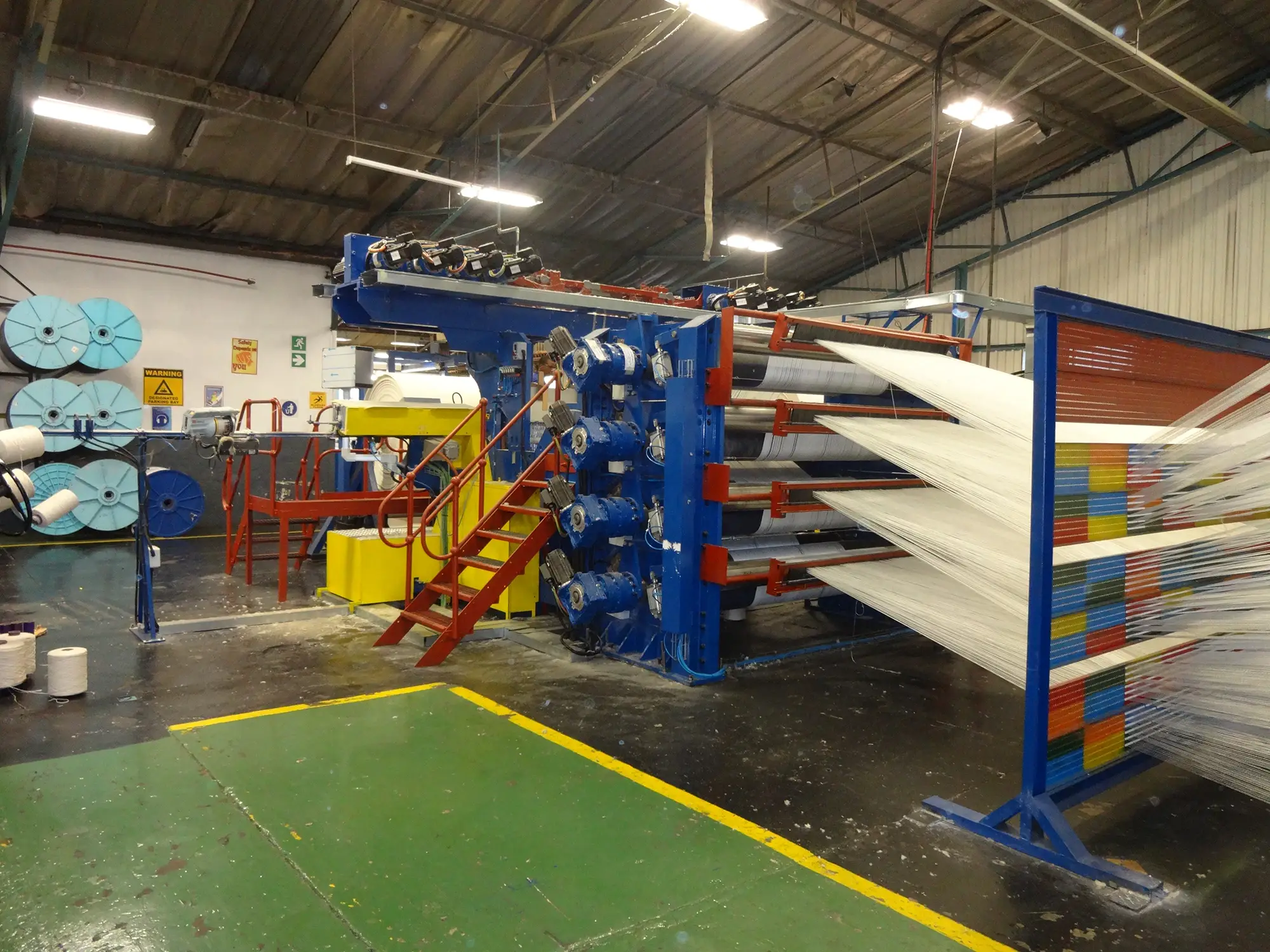

MOD. T.EP.AR
Weaving industrial machines for synthetic fabrics
T = loom
E = complementary eccentrics in oil bath
P = heavy
AR = rigid rods
Adjustable speed: 0 – 140 beats/min (depending on weaving width)
Weaving width: nominal loom height mm. up to 2.800 mm
SUITABLE FOR WEAVING
Warp:
Materials/diameters:
- Multifilament yarns: min. denier 300 - max. 30,000
- Density: number of yarns per cm. min. 5 - max. 200
Weft types:
Materials/diameters:
- Multifilament yarns: min. denier 300 - max. 30,000
- Density: number of yarns per cm. min. 5 - max. 200
Warp tension:
- Warp tension max. 8.500 kg/meter
- Warp tension: min. 100 kg/meter
- Warp tension in beat-up: max.10.000 kg/meter
