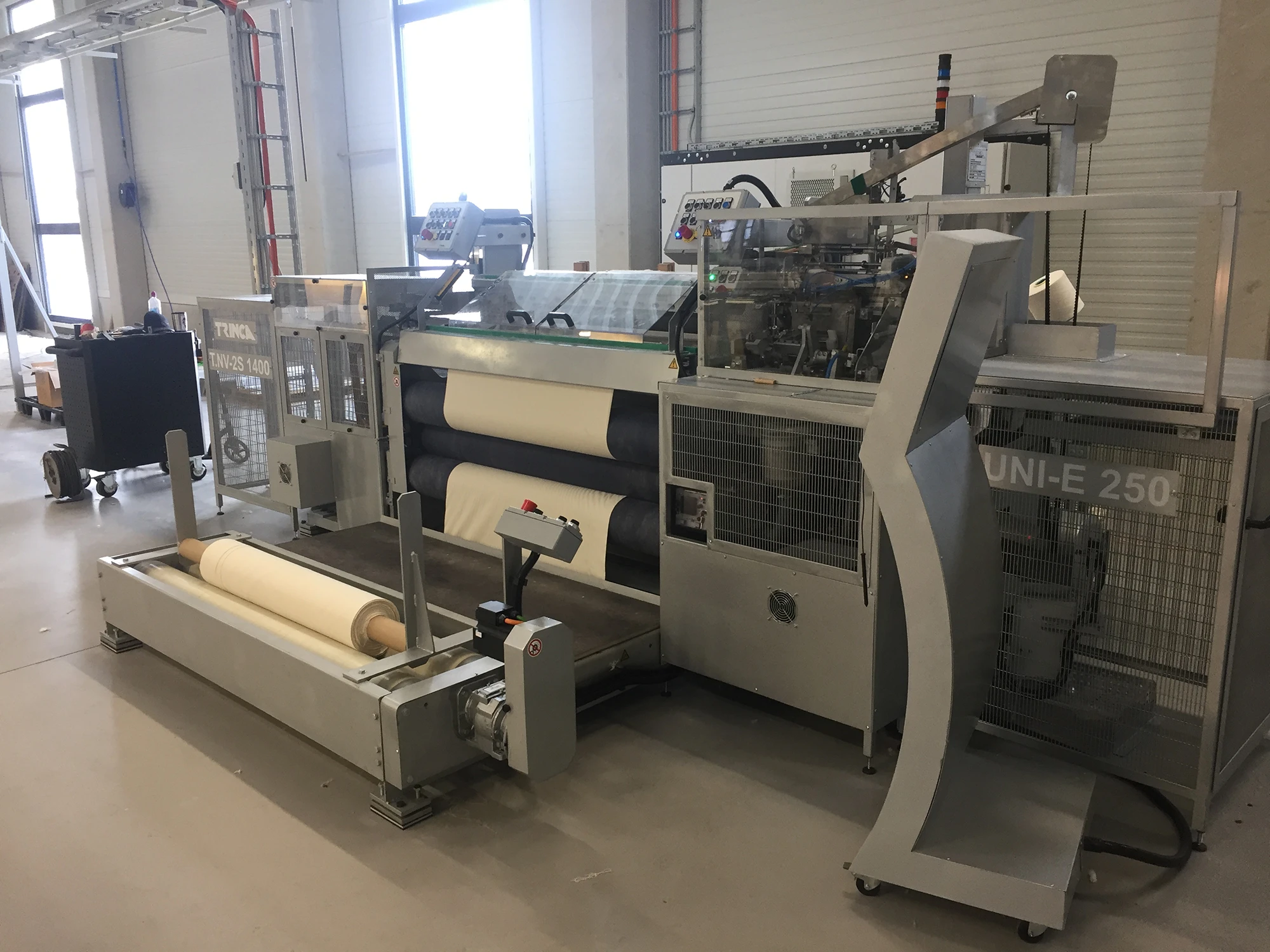

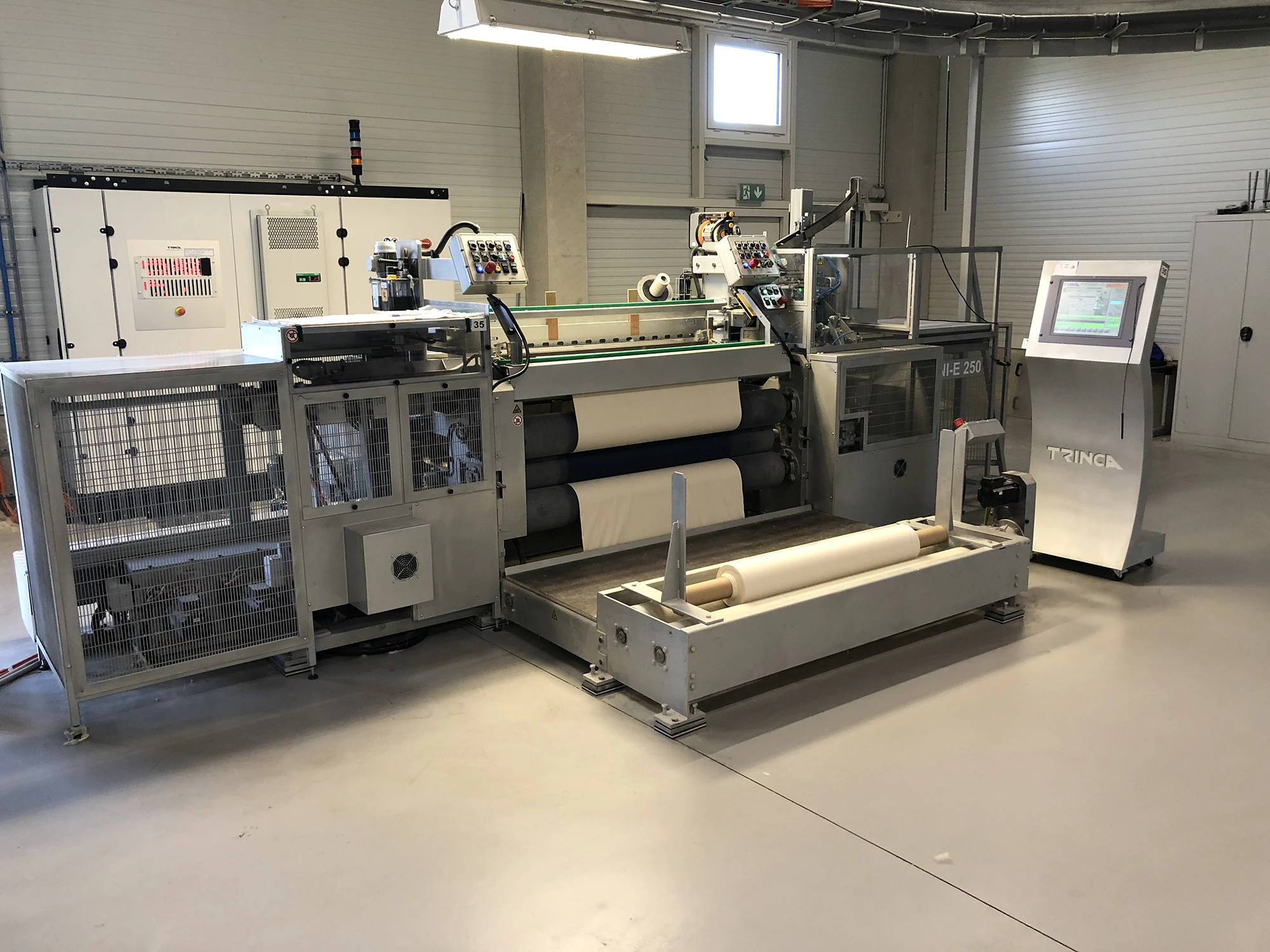

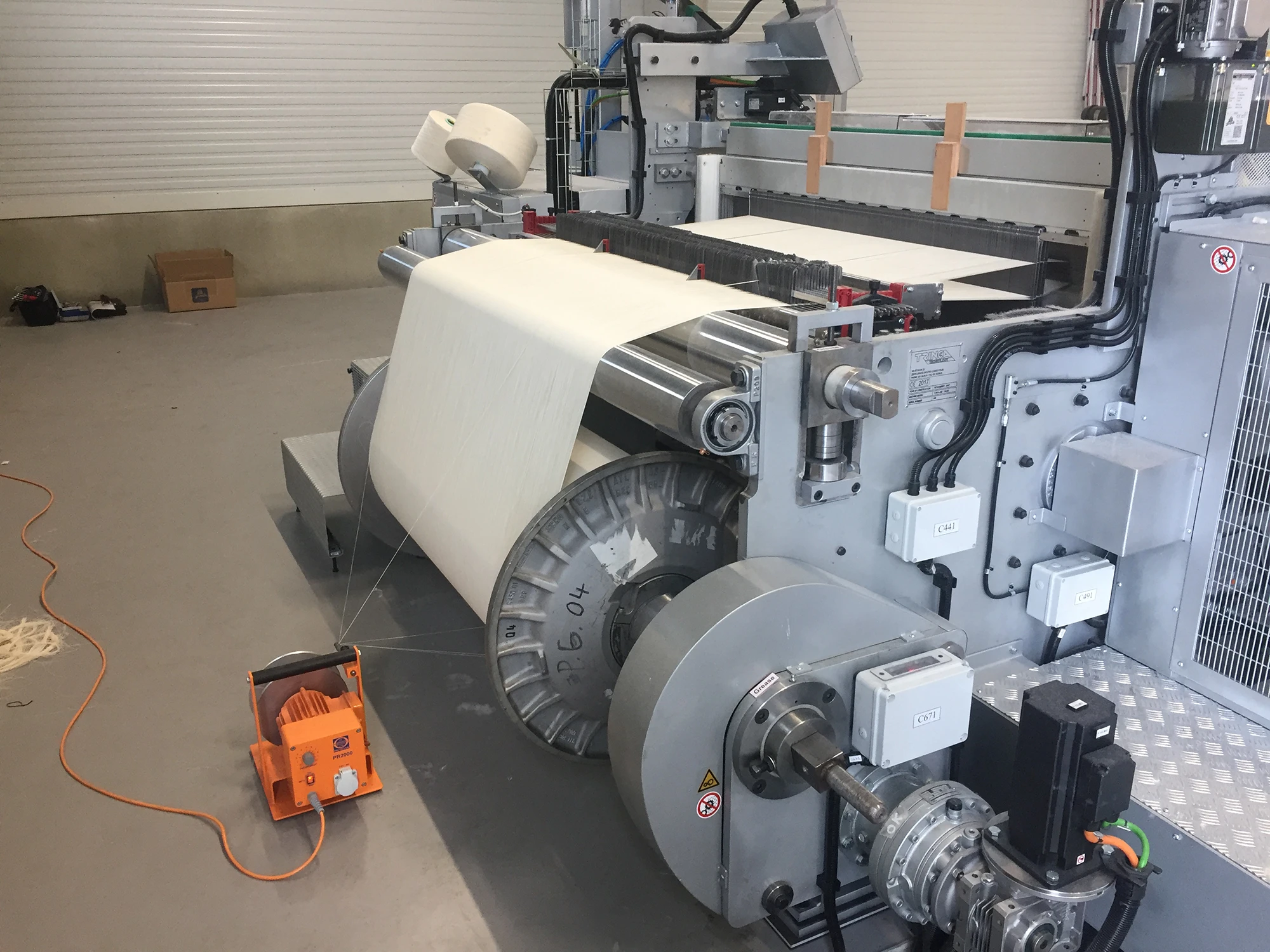

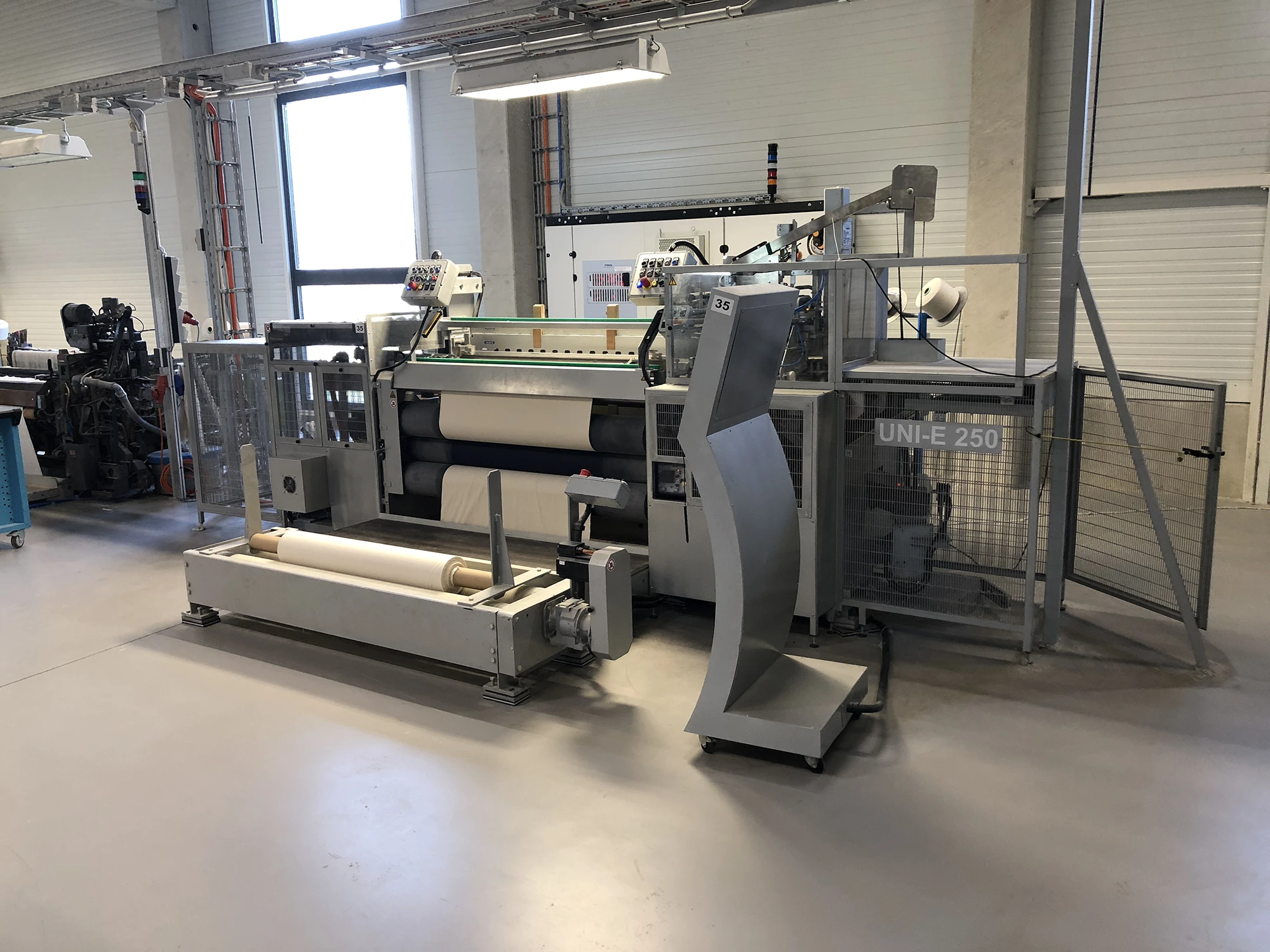

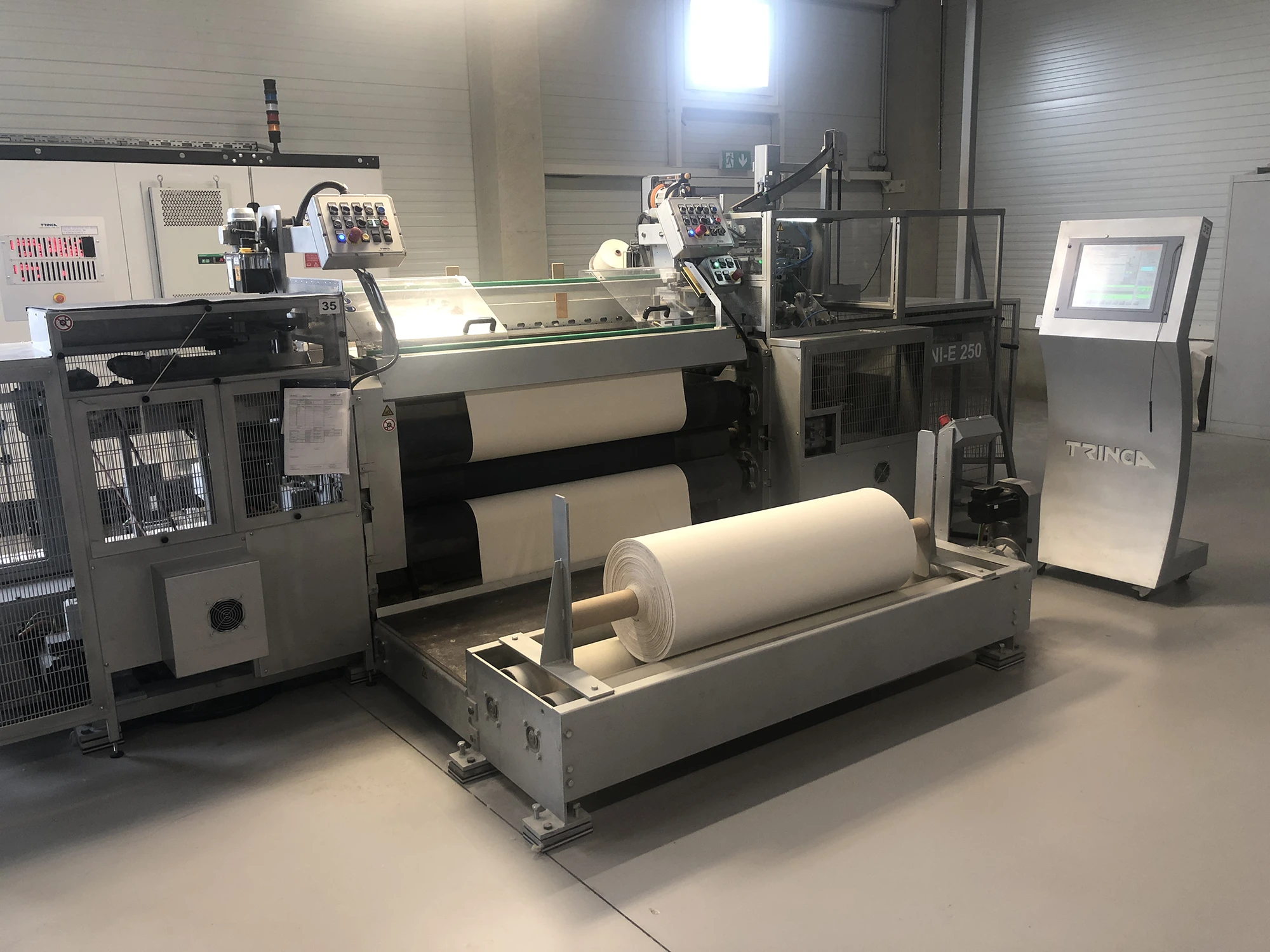

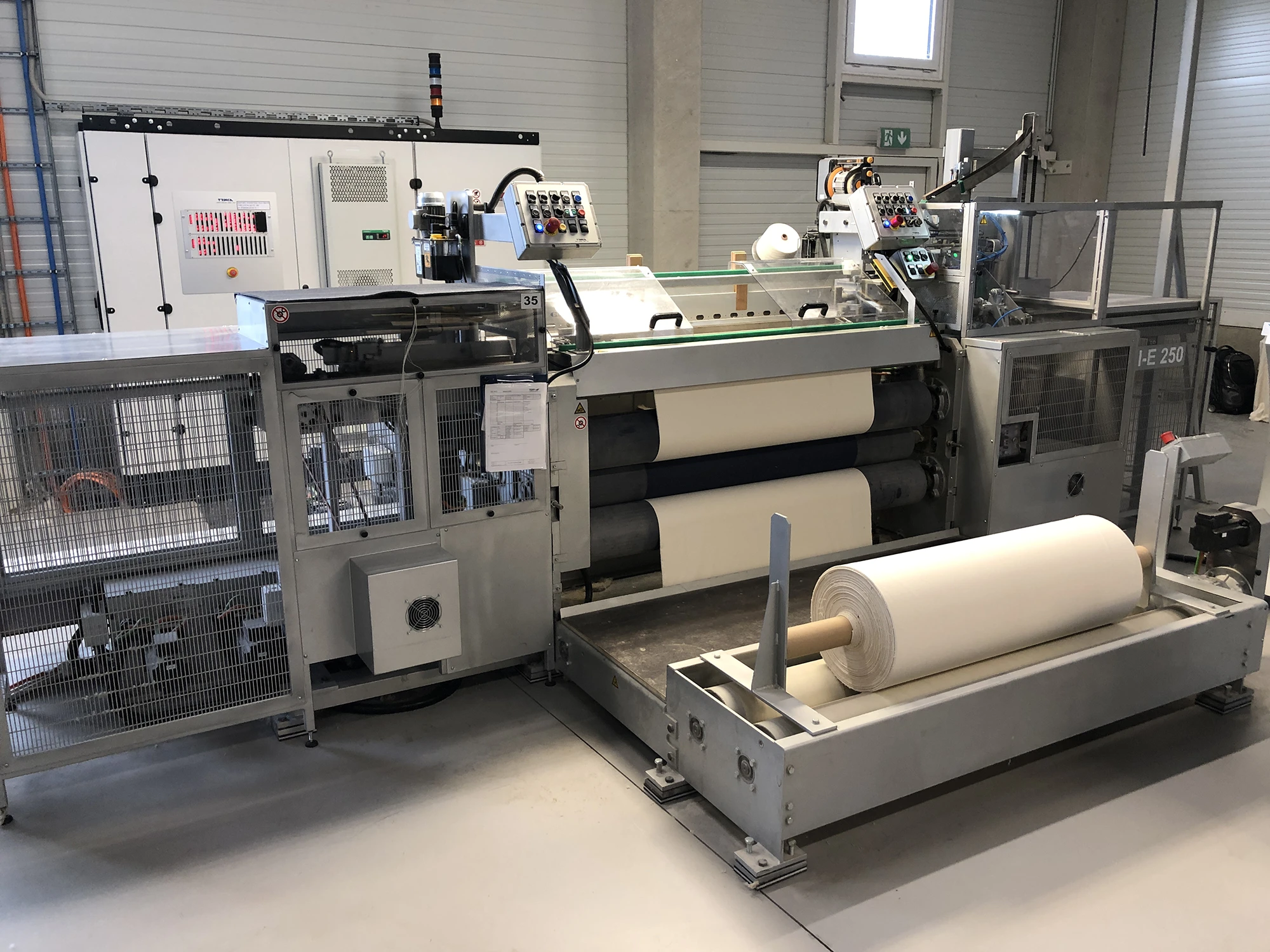

MOD. T.NV-2S
Weaving industrial machines for synthetic fabrics
T = loom
NV = shuttle with ring bobbins, length 250 mm, diameter 33 mm
2S = 2 shuttle throws controlled by servomotor (Patented)
Automatic bobbin change possible by
ELECTRONIC SINGLE-WIRE DEVICE mod. U-E 250
U = single-wire
E = electronic
250 = bobbin length 250 mm – diameter 33 mm
- Adjustable speed:0 – 180 beats/min (depending on weaving width)
- Weaving width: nominal loom height up to 2,500 mm
SUITABLE FOR WEAVING
Warp:
Materials/diameters:
- Polyester and polyamide monofilaments
- Multifilaments: min. denier 300 - max. 30,000
- Carbon fibers
- Density: Number of threads per cm: min. 5 - max. 200
Weave types:
Materials/diameters:
- Polyester and polyamide monofilaments
- Multifilamenti: denari min. 300 - max. 30.000
- Carbon fibers
- Density: Number of threads per cm: min. 5 - max. 200
Warp tension:
- Warp tension max. 1.000 kg/meter
- Warp tension: min. 10 kg/meter
- Warp tension in beat-up: max.1.500 kg/meter
