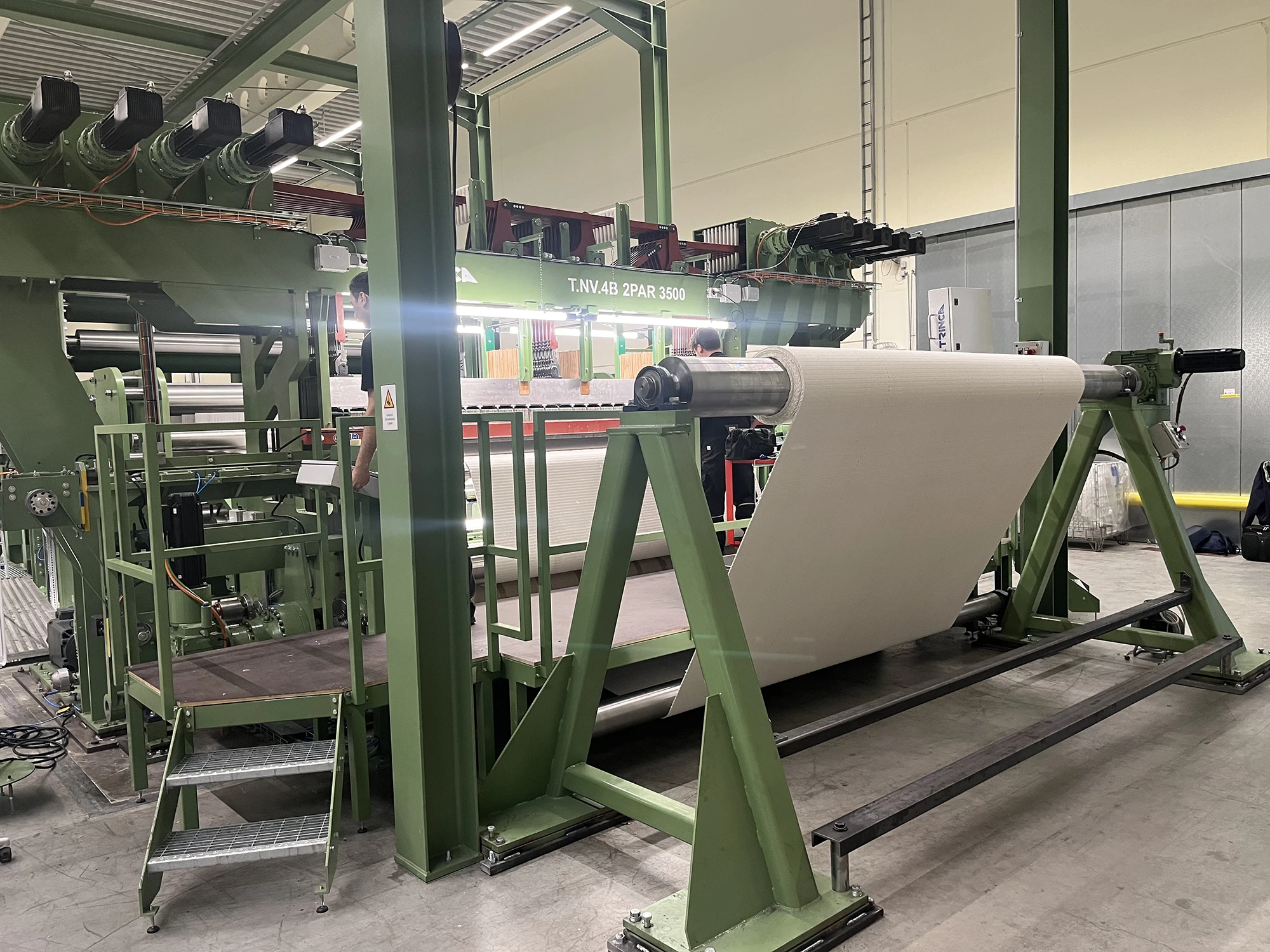

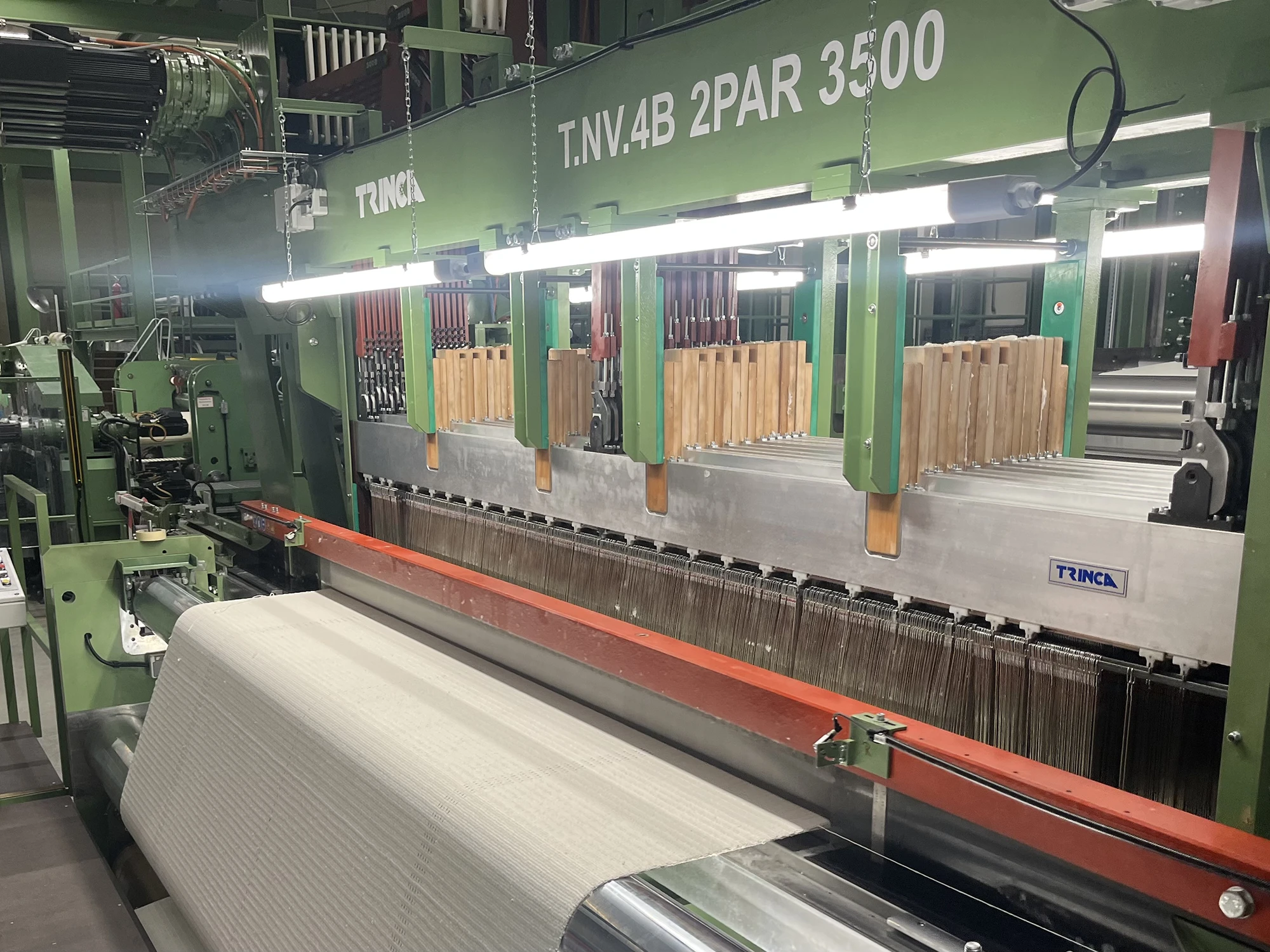

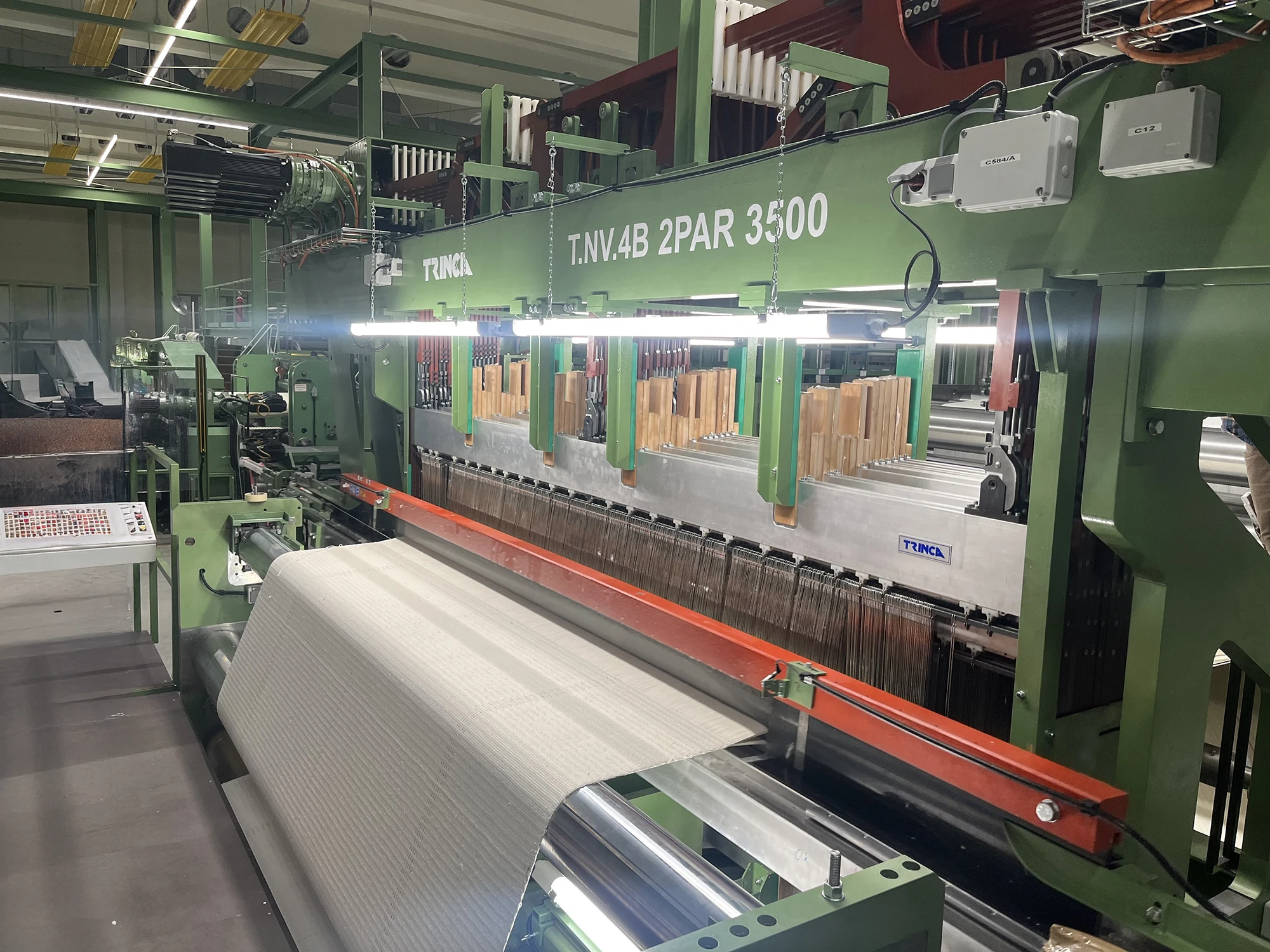

MOD. T.NV.B-2S
Weaving industrial machines for synthetic fabrics
T = loom
NV = shuttle
B = connecting rods
2S = 2 shuttle launches controlled by servomotor (Patented)
Adjustable speed: 0 – 70 beats/min (close shed)
Weaving width: Nominal loom height mm. up to 3.500 mm
SUITABLE FOR WEAVING
Warp:
Materials/diameters:
- Multifilament yarns: min. denier 300 - max. 30,000
- Density: number of yarns per cm. min. 5 - max. 200
Weft types:
Materials/diameters:
- Multifilament yarns: min. denier 300 - max. 30,000
- Density: number of yarns per cm. min. 5 - max. 200
Warp tension:
- Warp tension max. 8.500 kg/meter
- Warp tension: min. 100 kg/meter
- Warp tension in beat-up: max.10.400 kg/meter
